library(osmnxr)
g <- ox_example("olinda")Routing in osmnxr runs in the Rust core (Dijkstra, Yen,
multi-source). We use the bundled real network of central Olinda,
Brazil, so this runs offline.
Shortest path by distance
Snap two coordinates to the nearest nodes, then route between them:
orig <- ox_nearest_nodes(g, x = -34.8553, y = -8.0089)
dest <- ox_nearest_nodes(g, x = -34.8505, y = -8.0125)
route <- ox_route_shortest(g, orig, dest, weight = "length")
route
#> Simple feature collection with 1 feature and 3 fields
#> Geometry type: LINESTRING
#> Dimension: XY
#> Bounding box: xmin: -34.85537 ymin: -8.013207 xmax: -34.85157 ymax: -8.009047
#> Geodetic CRS: WGS 84
#> # A tibble: 1 × 4
#> route cost path geometry
#> <int> <dbl> <list> <LINESTRING [°]>
#> 1 1 680. <dbl [8]> (-34.85537 -8.009047, -34.85526 -8.009268, -34.85499 -8…The result is an sf tibble: the route’s cost, the node
osmids traversed and its merged street geometry, ready to
map. (ox_shortest_path() returns just the vector of node
ids, when that is all you need.)

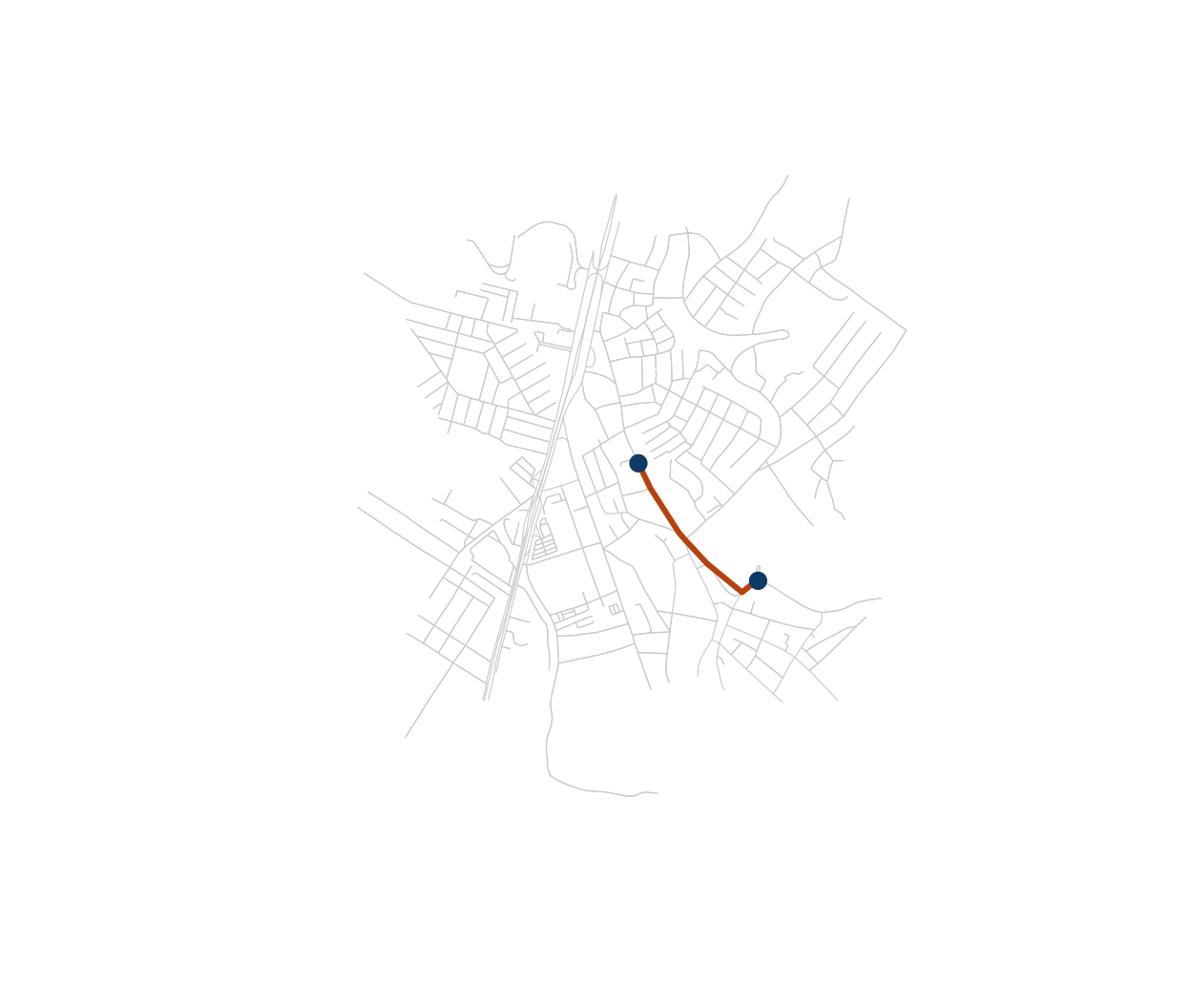

plot(g, col = "grey80", lwd = 0.6)
plot(sf::st_geometry(route), col = "#b7410e", lwd = 3, add = TRUE)
route_xy <- sf::st_coordinates(g$nodes)[match(route$path[[1]], g$nodes$osmid), ]
points(route_xy[c(1, nrow(route_xy)), ], pch = 19, col = "#0d3b66", cex = 1.2)
Travel time instead of distance
Real routing usually minimises time, not distance. Impute
free-flow speeds from each road’s class, derive per-edge travel times,
then route on them (Boeing 2025, routing module):
g <- ox_add_edge_travel_times(g)
head(g$edges[c("highway", "length", "speed_kph", "travel_time")])
#> Simple feature collection with 6 features and 4 fields
#> Geometry type: LINESTRING
#> Dimension: XY
#> Bounding box: xmin: -34.85889 ymin: -8.00763 xmax: -34.85675 ymax: -8.006154
#> Geodetic CRS: WGS 84
#> highway length speed_kph travel_time geometry
#> 1 trunk 143.05987 80 6.437694 LINESTRING (-34.85776 -8.00...
#> 2 trunk 39.20625 80 1.764281 LINESTRING (-34.85716 -8.00...
#> 3 residential 108.81964 30 13.058356 LINESTRING (-34.85716 -8.00...
#> 4 residential 108.81964 30 13.058356 LINESTRING (-34.85675 -8.00...
#> 5 tertiary 47.55902 40 4.280311 LINESTRING (-34.85867 -8.00...
#> 6 tertiary 47.55902 40 4.280311 LINESTRING (-34.85889 -8.00...
route_t <- ox_shortest_path(g, orig, dest, weight = "travel_time")
# may differ: the fastest route is not always the shortest
identical(route_t, route$path[[1]])
#> [1] TRUERoute alternatives
ox_route_shortest(k = ...) returns the k
shortest loopless routes (Yen’s algorithm) — useful for comparing
options or modelling redundancy:
ox_route_shortest(g, orig, dest, k = 3, weight = "travel_time")
#> Simple feature collection with 3 features and 3 fields
#> Geometry type: LINESTRING
#> Dimension: XY
#> Bounding box: xmin: -34.8567 ymin: -8.013207 xmax: -34.85157 ymax: -8.009047
#> Geodetic CRS: WGS 84
#> # A tibble: 3 × 4
#> route cost path geometry
#> <int> <dbl> <list> <LINESTRING [°]>
#> 1 1 72.1 <dbl [8]> (-34.85537 -8.009047, -34.85526 -8.009268, -34.85499 -…
#> 2 2 90.7 <dbl [11]> (-34.85537 -8.009047, -34.85526 -8.009268, -34.85499 -…
#> 3 3 111. <dbl [16]> (-34.85537 -8.009047, -34.85526 -8.009268, -34.85499 -…Routing with road preferences
Often the best route is not simply the fastest one: a dispatcher may
want to keep trucks off residential streets, a cyclist may want to stay
on them. ox_add_edge_penalties() turns that preference into
a per-edge column — here, the metres each edge spends on calm
residential road classes:
g <- ox_add_edge_penalties(g, c(residential = 1, living_street = 1))
head(g$edges[c("highway", "length", "penalty")])
#> Simple feature collection with 6 features and 3 fields
#> Geometry type: LINESTRING
#> Dimension: XY
#> Bounding box: xmin: -34.85889 ymin: -8.00763 xmax: -34.85675 ymax: -8.006154
#> Geodetic CRS: WGS 84
#> highway length penalty geometry
#> 1 trunk 143.05987 0.0000 LINESTRING (-34.85776 -8.00...
#> 2 trunk 39.20625 0.0000 LINESTRING (-34.85716 -8.00...
#> 3 residential 108.81964 108.8196 LINESTRING (-34.85716 -8.00...
#> 4 residential 108.81964 108.8196 LINESTRING (-34.85675 -8.00...
#> 5 tertiary 47.55902 0.0000 LINESTRING (-34.85867 -8.00...
#> 6 tertiary 47.55902 0.0000 LINESTRING (-34.85889 -8.00...The soft version just folds the penalty into the routing
weight (an ordinary shortest path that trades seconds against
residential metres at a fixed rate). The interesting questions, though,
are hard: what is the fastest route using at
most some budget of residential metres, and what does the whole
trade-off curve look like? ox_route_pareto() answers the
second — it enumerates every Pareto-optimal route exactly (bicriteria
label-setting in the Rust core; one-way streets respected):
o2 <- ox_nearest_nodes(g, x = -34.85445, y = -8.01503)
d2 <- ox_nearest_nodes(g, x = -34.84853, y = -8.00431)
front <- ox_route_pareto(g, o2, d2, weight = "travel_time", resource = "penalty")
front[c("cost", "resource")]
#> Simple feature collection with 6 features and 2 fields
#> Geometry type: LINESTRING
#> Dimension: XY
#> Bounding box: xmin: -34.85706 ymin: -8.01503 xmax: -34.84853 ymax: -8.00431
#> Geodetic CRS: WGS 84
#> # A tibble: 6 × 3
#> cost resource geometry
#> <dbl> <dbl> <LINESTRING [°]>
#> 1 190. 1328. (-34.85445 -8.01503, -34.85442 -8.014768, -34.85437 -8.014349,…
#> 2 191. 1296. (-34.85445 -8.01503, -34.85442 -8.014768, -34.85437 -8.014349,…
#> 3 193. 983. (-34.85445 -8.01503, -34.85538 -8.014993, -34.85548 -8.014706,…
#> 4 193. 952. (-34.85445 -8.01503, -34.85538 -8.014993, -34.85548 -8.014706,…
#> 5 197. 747. (-34.85445 -8.01503, -34.85538 -8.014993, -34.85548 -8.014706,…
#> 6 213. 583. (-34.85445 -8.01503, -34.85538 -8.014993, -34.85548 -8.014706,…Each successive route is a little slower and a little calmer; no other route beats any of them on both criteria. Plotted, the alternatives fan out between the fast arterial option and the quiet residential one:
plot(g, col = "grey85", lwd = 0.6)
cols <- grDevices::hcl.colors(nrow(front), "Zissou 1")
plot(sf::st_geometry(front), add = TRUE, col = cols, lwd = 2.5)
ox_route_constrained() answers the first question — the
exact constrained shortest path for one chosen budget:
best <- ox_route_constrained(g, o2, d2, weight = "travel_time",
resource = "penalty",
budget = stats::median(front$resource))
best[c("cost", "resource")]
#> Simple feature collection with 1 feature and 2 fields
#> Geometry type: LINESTRING
#> Dimension: XY
#> Bounding box: xmin: -34.85649 ymin: -8.01503 xmax: -34.84853 ymax: -8.00431
#> Geodetic CRS: WGS 84
#> # A tibble: 1 × 3
#> cost resource geometry
#> <dbl> <dbl> <LINESTRING [°]>
#> 1 193. 952. (-34.85445 -8.01503, -34.85538 -8.014993, -34.85548 -8.014706,…On metro-sized networks where enumerating the exact front gets
expensive, ox_route_constrained(..., method = "lagrangian")
solves the same problem by Lagrangian relaxation — a handful of plain
Dijkstra runs — returning a feasible route together with a proven lower
bound on the optimal cost (a message reports the duality gap whenever
optimality is not certified).
(For a road that is temporarily closed, don’t penalize it — mask it:
drop the edge, or set its weight to Inf, before
routing.)
Isochrones (service areas)
An isochrone is the area reachable from an origin within a budget.
With travel_time as the weight, cutoffs are in seconds —
here, 1- and 2-minute drive-time service areas from a central point:
centre <- ox_nearest_nodes(g, x = -34.8553, y = -8.0089)
iso <- ox_isochrone(g, centre, cutoffs = c(60, 120), weight = "travel_time")
iso[c("cutoff", "n_nodes")]
#> Simple feature collection with 2 features and 2 fields
#> Geometry type: POLYGON
#> Dimension: XY
#> Bounding box: xmin: -34.86146 ymin: -8.016166 xmax: -34.84852 ymax: -8.001461
#> Geodetic CRS: WGS 84
#> cutoff n_nodes geometry
#> 1 120 368 POLYGON ((-34.86141 -8.0064...
#> 2 60 104 POLYGON ((-34.85679 -8.0048...

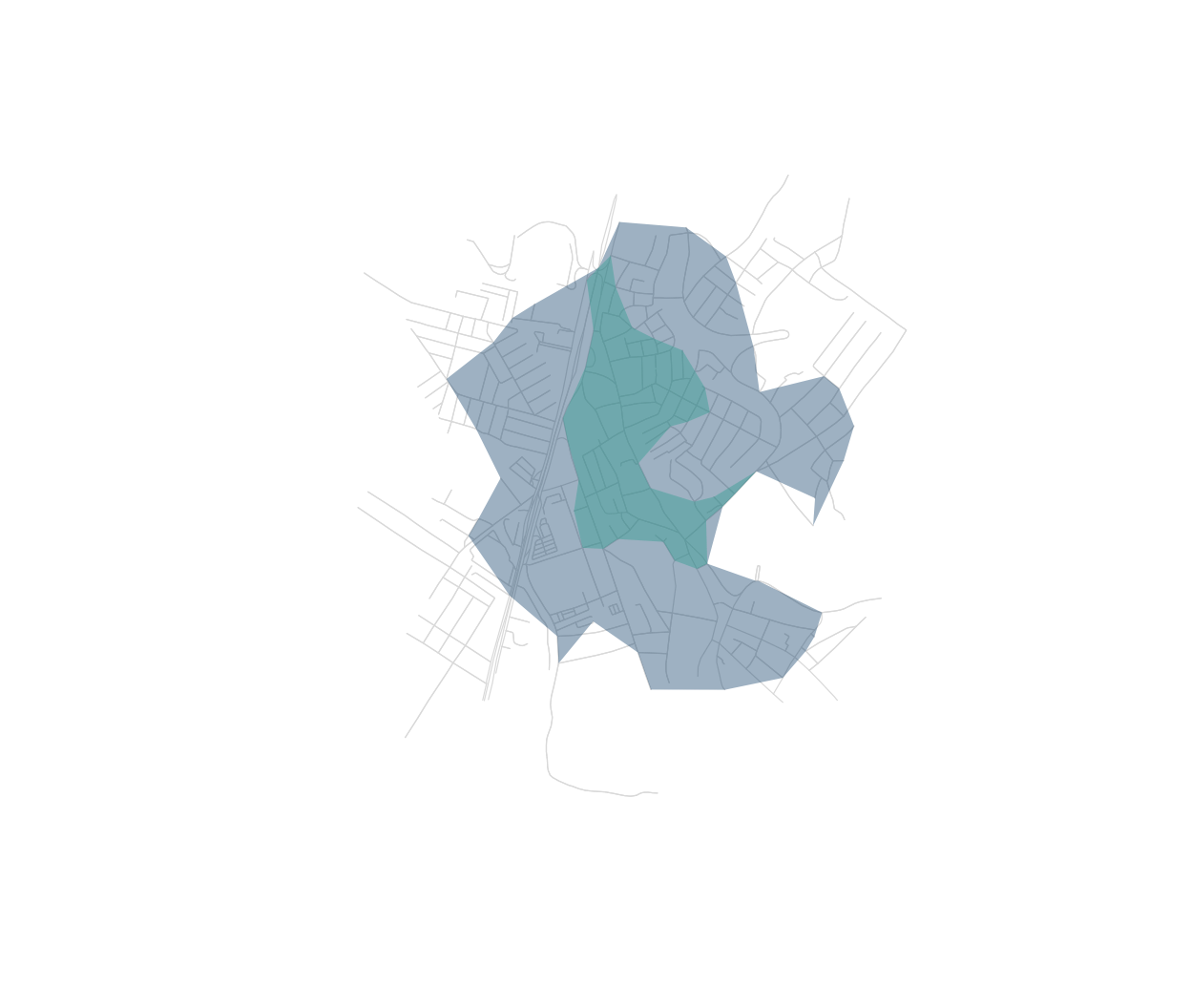

plot(g, col = "grey85", lwd = 0.6)
plot(sf::st_geometry(iso), add = TRUE, border = NA,
col = grDevices::adjustcolor(c("#0d3b66", "#2a9d8f"), 0.4))
Many-to-many distances
For accessibility work you often need a full origin–destination matrix in one call (see the Accessibility article):
hubs <- ox_nearest_nodes(g,
x = c(-34.8553, -34.8505, -34.852),
y = c(-8.0089, -8.0125, -8.006))
round(ox_distance_matrix(g, hubs, hubs, weight = "travel_time"))
#> 8945592343 1206764895 1499391454
#> 8945592343 0 72 73
#> 1206764895 76 0 134
#> 1499391454 73 129 0Blending new stops into the network
Routing starts and ends at nodes, but real origins and destinations
rarely sit on one — ox_nearest_nodes() above quietly moved
them to the closest intersection. ox_blend() does better:
it snaps each point onto its nearest edge and splits the edge
there (in both directions of a two-way street), turning the exact
location into a routable node — the osmnxr counterpart of
sfnetworks::st_network_blend(), computed in the Rust
core:
stops <- sf::st_sfc(
sf::st_point(c(-34.8540, -8.0095)),
sf::st_point(c(-34.8512, -8.0118)),
crs = sf::st_crs(g$nodes)
)
gb <- ox_blend(g, stops)
gb$meta$blend # which node each stop became, and how far it was snapped
#> # A tibble: 2 × 5
#> point node dist u v
#> <int> <dbl> <dbl> <dbl> <dbl>
#> 1 1 9016535993 0.000206 1572693772 9016123129
#> 2 2 9016535994 0.000575 1206764895 7272379949
ox_route_shortest(gb, gb$meta$blend$node[1], gb$meta$blend$node[2],
weight = "travel_time")
#> Simple feature collection with 1 feature and 3 fields
#> Geometry type: LINESTRING
#> Dimension: XY
#> Bounding box: xmin: -34.85411 ymin: -8.013207 xmax: -34.85153 ymax: -8.009675
#> Geodetic CRS: WGS 84
#> # A tibble: 1 × 4
#> route cost path geometry
#> <int> <dbl> <list> <LINESTRING [°]>
#> 1 1 82.4 <dbl [8]> (-34.85411 -8.009675, -34.8541 -8.00968, -34.85398 -8.0…ox_blend() also accepts a whole second
osm_graph (say, a metro layer over a street network): every
node of the second graph is snapped into the first, the two graphs are
stacked with ox_union(), and connector edges are
added between each snapped pair — producing one routable multimodal
graph. The blend is steerable on both sides — snap_nodes
flags which points (or y nodes) may snap,
snap_edges which edges of the network may receive them —
and connector_node_attrs copies node attributes of the
second graph (a per-station access time, say) onto its connector edges.
See ?ox_blend for the details.
